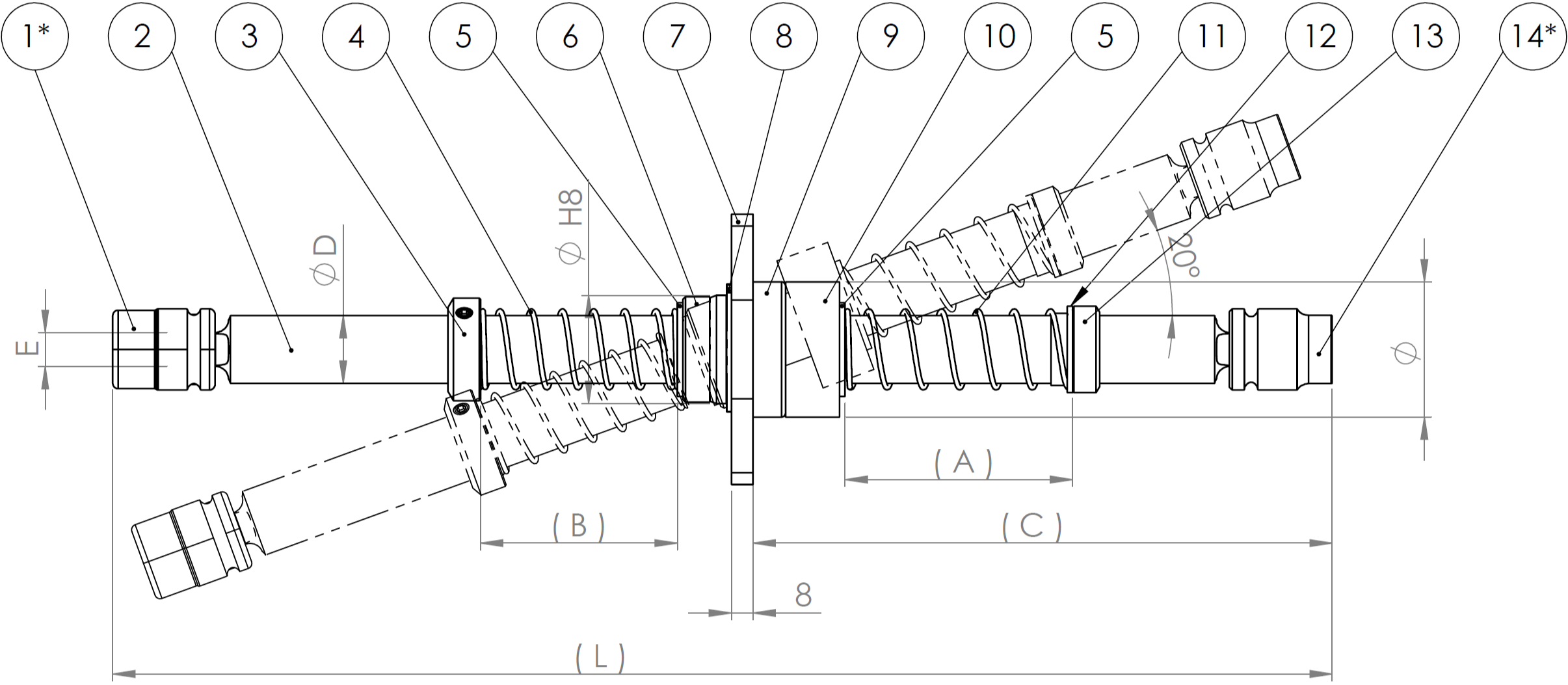

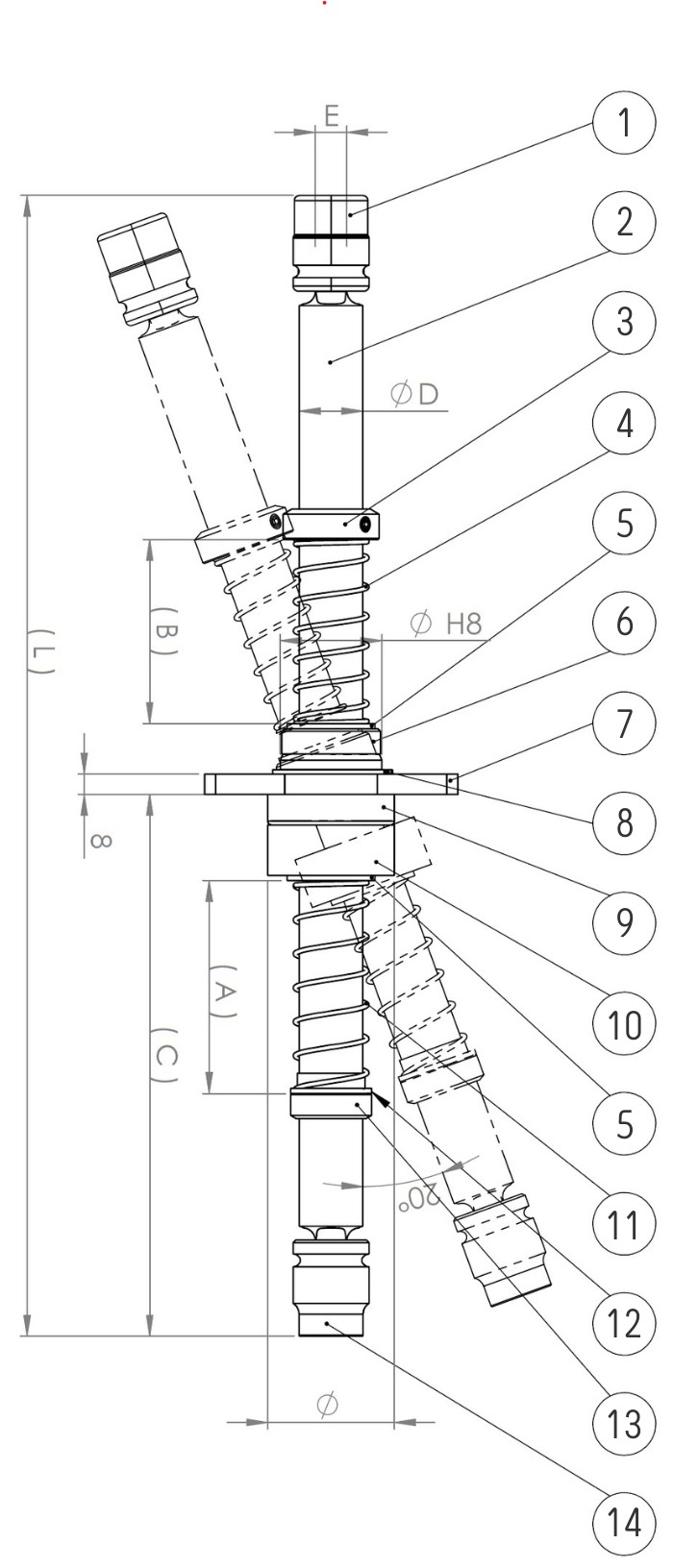

Spindelbauteile / Spindle components

Pos 1 | Steckschlüssel

Artikelnummer	Artikelbezeichnung	Hinweis
SNW19	SW-19	Stecknuss Surface Drive SW19, ohne Magnet (Standardnuss)
SNW22	SW-22	Stecknuss Surface Drive SW22, ohne Magnet (Standardnuss)
SNW22MO	SW-22 (Momento)	Stecknuss Surface Drive SW22, Ausführung Momento (Sondernuss)
SNW21M100	SW-21ML100	Stecknuss Surface Drive SW21, Länge 100 mm (Sondernuss)

Pos 2 | WELLE

Artikelnummer	Artikelbezeichnung	Hinweis
SW2001LXXX	SVF 20 Pos 2.1	Welle Ø20, Länge = XXX in mm
SW2501LXXX	SVF 25 Pos 2.1	Welle Ø25, Länge = XXX in mm
SW2502LXXX	NCAR SVFZ 25 Pos 1.0	Welle Ø25 (NCAR), Länge = XXX in mm
SW2503LXXX	SVF 25 6-kant Pos 2.1	Welle Ø25, 6-kant, Länge = XXX in mm

Hinweis: LXXX ist ein Platzhalter für die Wellenlänge. Im Datenblatt steht statt „XXX“ ein Zahlenwert (z. B. SW2501L200 = Länge 200 mm).

Pos 3 | Stellring

Artikelnummer	Artikelbezeichnung	Hinweis
KR202708	SCCJ20-8	Stellring SCCJ, 20×27×8 mm (d×D×b)
KR203210	SCCN20-10	Stellring SCCN, 20×32×10 mm (d×D×b)
KR203212	SCCN20-12	Stellring SCCN, 20×32×12 mm (d×D×b)
KR253208	SCCJ25-8	Stellring SCCJ, 25×32×8 mm (d×D×b)
KR253210	SCCJ25-10	Stellring SCCJ, 25×32×10 mm (d×D×b)
KR253812	SCCN25-12	Stellring SCCN, 25×38×12 mm (d×D×b)
KR253812P	PSCCN25-12	Stellring PSCCN, 25×38×12 mm (d×D×b)
KR253815	SCCN25-15	Stellring SCCN, 25×38×15 mm (d×D×b)
KR254515	ABR025	Stellring ABR, 25×45×15 mm (d×D×b)
KR253625	Buchse 1.7131 / 36DM	Stellring/Buchse, 25×36×25 mm (d×D×b)

Hinweis: d = Innendurchmesser, D = Außendurchmesser, b = Breite (alle Maße in mm).

Pos 4 | Druckfeder

Artikelnummer	Artikelbezeichnung	Hinweis
FE25042	D-233E-22	Feder Ø25, Länge 42mm
FE25069	D-232F	Feder Ø25, Länge 69mm
FE25090	DF308945 / 151142	Feder Ø25, Länge 90mm
FE25108	D-232G / D-18032-4	Feder Ø25, Länge 108mm
FE25150	DF307107 / 151523	Feder Ø25, Länge 150mm
FE25181	D-232H	Feder Ø25, Länge 181mm
FE25240	B61502439 / 149679	Feder Ø25, Länge 240mm
FE25294	D-232J	Feder Ø25, Länge 294mm
FE20195	D-238	Feder Ø20, Länge 195mm
FE20063	D-239A-02	Feder Ø20, Länge 63mm
FE20068	D-18029	Feder Ø20, Länge 68mm
FE20099	D-239A-04 / D-18030	Feder Ø20, Länge 99mm
FE20142	D-239A-05 / D-18031	Feder Ø20, Länge 142mm
FE20210	D-239A-06 / D-18032	Feder Ø20, Länge 210mm

Hinweis: Feder Ø25 = Feder für Welle Ø25 mm | Feder Ø20 = Feder für Welle Ø20 mm

Pos 5 | Stützscheibe

Artikelnummer	Artikelbezeichnung	Hinweis
ST2820	Stützscheibe 28×20 mm	Stützscheibe, ØD 28 mm / Ød 20 mm
ST3525	Stützscheibe 35×25 mm	Stützscheibe, ØD 35 mm / Ød 25 mm
ST3726	Stützscheibe 37×26 mm	Stützscheibe, ØD 37 mm / Ød 26 mm

Hinweis: d = Innendurchmesser, D = Außendurchmesser (alle Maße in mm).

Pos 6 | Distanz

Artikelnummer	Artikelbezeichnung	Hinweis
SD2033P	Distanz SVF 20 Pos 6.1	Distanz, ØD 33 mm / Ød 20 mm
SD2039P	Distanz SVH 20	Distanz, ØD 39 mm / Ød 20 mm
SD2539P	Distanz SVH 25	Distanz, ØD 39 mm / Ød 25 mm

Hinweis: d = Innendurchmesser, D = Außendurchmesser (alle Maße in mm).

Pos 7 | Adapterplatte

Artikelnummer	Artikelbezeichnung	Hinweis
SP2501S	SVP25	Adapterplatte SVP25 (Standard), Ød 40 mm
SP2502S	SVP26	Adapterplatte SVP26 (Sonder), Ød 40 mm

Hinweis: d = Innendurchmesser (alle Maße in mm).

Pos 8 | Sicherungsring

Artikelnummer	Artikelbezeichnung	Hinweis
SPS2501	Sicherungsring	Sicherungsring, Ød 25 mm

Hinweis: d = Innendurchmesser (alle Maße in mm).

Pos 9 | Gehäuse

Artikelnummer	Artikelbezeichnung	Hinweis
SG205040A	SVH 20	Gehäuse, Ød 20 mm / ØD 50 mm (Alu)
SG204540A	SVH 20 Pos 02	Gehäuse, Ød 20 mm / ØD 45 mm (Alu)
SG203834A	SVF 20 Pos 9.1	Gehäuse, Ød 20 mm / ØD 38 mm (Alu)
SG205040P	SVFZ 20 Pos 8.0	Gehäuse, Ød 20 mm / ØD 50 mm (POM)
SG203834P	SVFZ 20 Pos 9.1	Gehäuse, Ød 20 mm / ØD 38 mm (POM)
SG255040P	SVFZ 25 Pos 8.0	Gehäuse, Ød 25 mm / ØD 50 mm (POM)
SG253834P	SVFZ 25 Pos 9.1	Gehäuse, Ød 25 mm / ØD 38 mm (POM)
SG255040A	SVH 25	Gehäuse, Ød 25 mm / ØD 50 mm (Alu)
SG257855P	NCAR SVFZ 25 Pos 2.0	Gehäuse, Ød 25 mm / ØD 78 mm (POM)
SG254540A	SVH 25 Pos 02	Gehäuse, Ød 25 mm / ØD 45 mm (Alu)

Hinweis: d = Innendurchmesser, D = Außendurchmesser (alle Maße in mm).

Pos 10 | Scheibe

Artikelnummer	Artikelbezeichnung	Hinweis
SS2038P	SVF 20 Pos 10.1	Scheibe, Ød 20 mm / ØD 38 mm
SS2038PA	SVF 20 Pos 10.2	Scheibe, Ød 20 mm / ØD 38 mm
SS2045P	SVH 20 Pos 2	Scheibe, Ød 20 mm / ØD 45 mm
SS2050PA	SVH 20 Pos 3	Scheibe, Ød 20 mm / ØD 50 mm
SS2050P	SVH 20	Scheibe, Ød 20 mm / ØD 50 mm
SS2545P	SVH 25 Pos 2	Scheibe, Ød 25 mm / ØD 45 mm
SS2550P	SVH 25	Scheibe, Ød 25 mm / ØD 50 mm
SS2045PA	SVH 20 Pos 1	Scheibe, Ød 20 mm / ØD 45 mm

Hinweis: d = Innendurchmesser, D = Außendurchmesser (alle Maße in mm).

Pos 11 | Druckfeder

Artikelnummer	Artikelbezeichnung	Hinweis
FE25042	D-233E-22	Feder Ø25, Länge 42mm
FE25069	D-232F	Feder Ø25, Länge 69mm
FE25090	DF308945 / 151142	Feder Ø25, Länge 90mm
FE25108	D-232G / D-18032-4	Feder Ø25, Länge 108mm
FE25150	DF307107 / 151523	Feder Ø25, Länge 150mm
FE25181	D-232H	Feder Ø25, Länge 181mm
FE25240	B61502439 / 149679	Feder Ø25, Länge 240mm
FE25294	D-232J	Feder Ø25, Länge 294mm
FE20195	D-238	Feder Ø20, Länge 195mm
FE20063	D-239A-02	Feder Ø20, Länge 63mm
FE20068	D-18029	Feder Ø20, Länge 68mm
FE20099	D-239A-04 / D-18030	Feder Ø20, Länge 99mm
FE20142	D-239A-05 / D-18031	Feder Ø20, Länge 142mm
FE20210	D-239A-06 / D-18032	Feder Ø20, Länge 210mm

Hinweis: Feder Ø25 = Feder für Welle Ø25 mm | Feder Ø20 = Feder für Welle Ø20 mm

Pos 12 | Buchse

Artikelnummer	Artikelbezeichnung	Hinweis
SB2548S	NCAR SVFZ 25 Pos 3.0	Buchse, Ød 25 mm / ØD 48 mm
SB2032P	SVF 20 Pos 14	Buchse, Ød 20 mm / ØD 32 mm

Hinweis: d = Innendurchmesser, D = Außendurchmesser (alle Maße in mm).

Pos 13 | Stellring

Artikelnummer	Artikelbezeichnung	Hinweis
KR202708	SCCJ20-8	Stellring SCCJ, 20×27×8 mm (d×D×b)
KR203210	SCCN20-10	Stellring SCCN, 20×32×10 mm (d×D×b)
KR203212	SCCN20-12	Stellring SCCN, 20×32×12 mm (d×D×b)
KR253208	SCCJ25-8	Stellring SCCJ, 25×32×8 mm (d×D×b)
KR253210	SCCJ25-10	Stellring SCCJ, 25×32×10 mm (d×D×b)
KR253812	SCCN25-12	Stellring SCCN, 25×38×12 mm (d×D×b)
KR253812P	PSCCN25-12	Stellring PSCCN, 25×38×12 mm (d×D×b)
KR253815	SCCN25-15	Stellring SCCN, 25×38×15 mm (d×D×b)
KR254515	ABR025	Stellring ABR, 25×45×15 mm (d×D×b)
KR253625	Buchse 1.7131 / 36DM	Stellring/Buchse, 25×36×25 mm (d×D×b)

Hinweis: d = Innendurchmesser, D = Außendurchmesser, b = Breite (alle Maße in mm).

Pos 14 | Steckschlüssel

Artikelnummer	Artikelbezeichnung	Hinweis
SNE10M	E-10M	Stecknuss Außen-Torx E10, mit Magnet (Standardnuss)
SNE12M	E-12M	Stecknuss Außen-Torx E12, mit Magnet (Standardnuss)
SNE12ML80	E-12ML80	Stecknuss Außen-Torx E12, mit Magnet, Länge 80 mm (Sondernuss)
SNE12MS	E-12MS	Stecknuss Außen-Torx E12, mit Magnet (Sondernuss)
SNE14M	E-14M	Stecknuss Außen-Torx E14, mit Magnet (Standardnuss)
SNE14MD22	E-14MD22	Stecknuss Außen-Torx E14, mit Magnet (Sondernuss)
SNE16M	E-16M	Stecknuss Außen-Torx E16, mit Magnet (Standardnuss)
SNE16MS	E-16MS	Stecknuss Außen-Torx E16, mit Magnet (Sondernuss)
SNE18M	E-18M	Stecknuss Außen-Torx E18, mit Magnet (Standardnuss)
SNE20M	E-20M	Stecknuss Außen-Torx E20, mit Magnet (Standardnuss)
SND13M	SD-13M	Stecknuss Surface Drive SD13, mit Magnet (Standardnuss)
SND16M	SD-16M	Stecknuss Surface Drive SD16, mit Magnet (Standardnuss)
SND18M	SD-18M	Stecknuss Surface Drive SD18, mit Magnet (Standardnuss)
SND18L57	SD-18L57	Stecknuss Surface Drive SD18, ohne Magnet, Länge 57 mm (Sondernuss)
SND18MST17	SD-18MST17	Stecknuss Surface Drive SD18, mit Magnet (Sondernuss)
SND21	SD-21	Stecknuss Surface Drive SD21, ohne Magnet (Standardnuss)
SND21M	SD-21M	Stecknuss Surface Drive SD21, mit Magnet (Standardnuss)
SND21MST9	SD-21M (ST9)	Stecknuss Surface Drive SD21, mit Magnet (Sondernuss)

Ersatzteile anfragen

Kontakt aufnehmen

Pos 1 | Socket

Part number	Item designation	Note
SNW19	SW-19	Surface Drive socket SW19, without magnet (standard socket)
SNW22	SW-22	Surface Drive socket SW22, without magnet (standard socket)
SNW22MO	SW-22 (Momento)	Surface Drive socket SW22, Momento version (special socket)
SNW21M100	SW-21ML100	Surface Drive socket SW21, length 100 mm (special socket)

Pos 2 | Shaft

Part number	Item designation	Note
SW2001LXXX	SVF 20 Pos 2.1	Shaft Ø20, length = XXX mm
SW2501LXXX	SVF 25 Pos 2.1	Shaft Ø25, length = XXX mm
SW2502LXXX	NCAR SVFZ 25 Pos 1.0	Shaft Ø25 (NCAR), length = XXX mm
SW2503LXXX	SVF 25 hex Pos 2.1	Shaft Ø25, hex, length = XXX mm

Note: LXXX is a placeholder for the shaft length. In the datasheet, “XXX” is replaced by a number (e.g., SW2501L200 = length 200 mm).

Pos 3 | Set collar

Part number	Item designation	Note
KR202708	SCCJ20-8	Set collar SCCJ, 20×27×8 mm (d×D×b)
KR203210	SCCN20-10	Set collar SCCN, 20×32×10 mm (d×D×b)
KR203212	SCCN20-12	Set collar SCCN, 20×32×12 mm (d×D×b)
KR253208	SCCJ25-8	Set collar SCCJ, 25×32×8 mm (d×D×b)
KR253210	SCCJ25-10	Set collar SCCJ, 25×32×10 mm (d×D×b)
KR253812	SCCN25-12	Set collar SCCN, 25×38×12 mm (d×D×b)
KR253812P	PSCCN25-12	Set collar PSCCN, 25×38×12 mm (d×D×b)
KR253815	SCCN25-15	Set collar SCCN, 25×38×15 mm (d×D×b)
KR254515	ABR025	Set collar ABR, 25×45×15 mm (d×D×b)
KR253625	Bushing 1.7131 / 36DM	Set collar/bushing, 25×36×25 mm (d×D×b)

Note: d = inside diameter, D = outside diameter, b = width (all dimensions in mm).

Pos 4 | Compression spring

Part number	Item designation	Note
FE25042	D-233E-22	Spring Ø25, length 42 mm
FE25069	D-232F	Spring Ø25, length 69 mm
FE25090	DF308945 / 151142	Spring Ø25, length 90 mm
FE25108	D-232G / D-18032-4	Spring Ø25, length 108 mm
FE25150	DF307107 / 151523	Spring Ø25, length 150 mm
FE25181	D-232H	Spring Ø25, length 181 mm
FE25240	B61502439 / 149679	Spring Ø25, length 240 mm
FE25294	D-232J	Spring Ø25, length 294 mm
FE20195	D-238	Spring Ø20, length 195 mm
FE20063	D-239A-02	Spring Ø20, length 63 mm
FE20068	D-18029	Spring Ø20, length 68 mm
FE20099	D-239A-04 / D-18030	Spring Ø20, length 99 mm
FE20142	D-239A-05 / D-18031	Spring Ø20, length 142 mm
FE20210	D-239A-06 / D-18032	Spring Ø20, length 210 mm

Note: Spring Ø25 = spring for shaft Ø25 mm | Spring Ø20 = spring for shaft Ø20 mm

Pos 5 | Support washer

Part number	Item designation	Note
ST2820	Support washer 28×20 mm	Support washer, ØD 28 mm / Ød 20 mm
ST3525	Support washer 35×25 mm	Support washer, ØD 35 mm / Ød 25 mm
ST3726	Support washer 37×26 mm	Support washer, ØD 37 mm / Ød 26 mm

Note: d = inside diameter, D = outside diameter (all dimensions in mm).

Pos 6 | Spacer

Part number	Item designation	Note
SD2033P	Spacer SVF 20 Pos 6.1	Spacer, ØD 33 mm / Ød 20 mm
SD2039P	Spacer SVH 20	Spacer, ØD 39 mm / Ød 20 mm
SD2539P	Spacer SVH 25	Spacer, ØD 39 mm / Ød 25 mm

Note: d = inside diameter, D = outside diameter (all dimensions in mm).

Pos 7 | Adapter plate

Part number	Item designation	Note
SP2501S	SVP25	Adapter plate SVP25 (standard), Ød 40 mm
SP2502S	SVP26	Adapter plate SVP26 (special), Ød 40 mm

Note: d = inside diameter (all dimensions in mm).

Pos 8 | Retaining ring

Part number	Item designation	Note
SPS2501	Retaining ring	Retaining ring, Ød 25 mm

Note: d = inside diameter (all dimensions in mm).

Pos 9 | Housing

Part number	Item designation	Note
SG205040A	SVH 20	Housing, Ød 20 mm / ØD 50 mm (aluminum)
SG204540A	SVH 20 Pos 02	Housing, Ød 20 mm / ØD 45 mm (aluminum)
SG203834A	SVF 20 Pos 9.1	Housing, Ød 20 mm / ØD 38 mm (aluminum)
SG205040P	SVFZ 20 Pos 8.0	Housing, Ød 20 mm / ØD 50 mm (POM)
SG203834P	SVFZ 20 Pos 9.1	Housing, Ød 20 mm / ØD 38 mm (POM)
SG255040P	SVFZ 25 Pos 8.0	Housing, Ød 25 mm / ØD 50 mm (POM)
SG253834P	SVFZ 25 Pos 9.1	Housing, Ød 25 mm / ØD 38 mm (POM)
SG255040A	SVH 25	Housing, Ød 25 mm / ØD 50 mm (aluminum)
SG257855P	NCAR SVFZ 25 Pos 2.0	Housing, Ød 25 mm / ØD 78 mm (POM)
SG254540A	SVH 25 Pos 02	Housing, Ød 25 mm / ØD 45 mm (aluminum)

Note: d = inside diameter, D = outside diameter (all dimensions in mm).

Pos 10 | Washer

Part number	Item designation	Note
SS2038P	SVF 20 Pos 10.1	Washer, Ød 20 mm / ØD 38 mm
SS2038PA	SVF 20 Pos 10.2	Washer, Ød 20 mm / ØD 38 mm
SS2045P	SVH 20 Pos 2	Washer, Ød 20 mm / ØD 45 mm
SS2050PA	SVH 20 Pos 3	Washer, Ød 20 mm / ØD 50 mm
SS2050P	SVH 20	Washer, Ød 20 mm / ØD 50 mm
SS2545P	SVH 25 Pos 2	Washer, Ød 25 mm / ØD 45 mm
SS2550P	SVH 25	Washer, Ød 25 mm / ØD 50 mm
SS2045PA	SVH 20 Pos 1	Washer, Ød 20 mm / ØD 45 mm

Note: d = inside diameter, D = outside diameter (all dimensions in mm).

Pos 11 | Compression spring

Part number	Item designation	Note
FE25042	D-233E-22	Spring Ø25, length 42 mm
FE25069	D-232F	Spring Ø25, length 69 mm
FE25090	DF308945 / 151142	Spring Ø25, length 90 mm
FE25108	D-232G / D-18032-4	Spring Ø25, length 108 mm
FE25150	DF307107 / 151523	Spring Ø25, length 150 mm
FE25181	D-232H	Spring Ø25, length 181 mm
FE25240	B61502439 / 149679	Spring Ø25, length 240 mm
FE25294	D-232J	Spring Ø25, length 294 mm
FE20195	D-238	Spring Ø20, length 195 mm
FE20063	D-239A-02	Spring Ø20, length 63 mm
FE20068	D-18029	Spring Ø20, length 68 mm
FE20099	D-239A-04 / D-18030	Spring Ø20, length 99 mm
FE20142	D-239A-05 / D-18031	Spring Ø20, length 142 mm
FE20210	D-239A-06 / D-18032	Spring Ø20, length 210 mm

Note: Spring Ø25 = spring for shaft Ø25 mm | Spring Ø20 = spring for shaft Ø20 mm

Pos 12 | Bushing

Part number	Item designation	Note
SB2548S	NCAR SVFZ 25 Pos 3.0	Bushing, Ød 25 mm / ØD 48 mm
SB2032P	SVF 20 Pos 14	Bushing, Ød 20 mm / ØD 32 mm

Note: d = inside diameter, D = outside diameter (all dimensions in mm).

Pos 13 | Set collar

Part number	Item designation	Note
KR202708	SCCJ20-8	Set collar SCCJ, 20×27×8 mm (d×D×b)
KR203210	SCCN20-10	Set collar SCCN, 20×32×10 mm (d×D×b)
KR203212	SCCN20-12	Set collar SCCN, 20×32×12 mm (d×D×b)
KR253208	SCCJ25-8	Set collar SCCJ, 25×32×8 mm (d×D×b)
KR253210	SCCJ25-10	Set collar SCCJ, 25×32×10 mm (d×D×b)
KR253812	SCCN25-12	Set collar SCCN, 25×38×12 mm (d×D×b)
KR253812P	PSCCN25-12	Set collar PSCCN, 25×38×12 mm (d×D×b)
KR253815	SCCN25-15	Set collar SCCN, 25×38×15 mm (d×D×b)
KR254515	ABR025	Set collar ABR, 25×45×15 mm (d×D×b)
KR253625	Bushing 1.7131 / 36DM	Set collar/bushing, 25×36×25 mm (d×D×b)

Note: d = inside diameter, D = outside diameter, b = width (all dimensions in mm).

Pos 14 | Socket

Part number	Item designation	Note
SNE10M	E-10M	External Torx socket E10, with magnet (standard socket)
SNE12M	E-12M	External Torx socket E12, with magnet (standard socket)
SNE12ML80	E-12ML80	External Torx socket E12, with magnet, length 80 mm (special socket)
SNE12MS	E-12MS	External Torx socket E12, with magnet (special socket)
SNE14M	E-14M	External Torx socket E14, with magnet (standard socket)
SNE14MD22	E-14MD22	External Torx socket E14, with magnet (special socket)
SNE16M	E-16M	External Torx socket E16, with magnet (standard socket)
SNE16MS	E-16MS	External Torx socket E16, with magnet (special socket)
SNE18M	E-18M	External Torx socket E18, with magnet (standard socket)
SNE20M	E-20M	External Torx socket E20, with magnet (standard socket)
SND13M	SD-13M	Surface Drive socket SD13, with magnet (standard socket)
SND16M	SD-16M	Surface Drive socket SD16, with magnet (standard socket)
SND18M	SD-18M	Surface Drive socket SD18, with magnet (standard socket)
SND18L57	SD-18L57	Surface Drive socket SD18, without magnet, length 57 mm (special socket)
SND18MST17	SD-18MST17	Surface Drive socket SD18, with magnet (special socket)
SND21	SD-21	Surface Drive socket SD21, without magnet (standard socket)
SND21M	SD-21M	Surface Drive socket SD21, with magnet (standard socket)
SND21MST9	SD-21M (ST9)	Surface Drive socket SD21, with magnet (special socket)

Spare parts request
