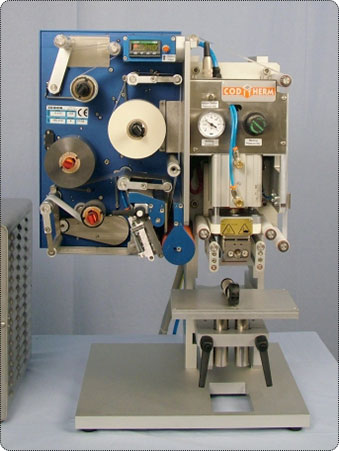

CODITHERM FLAT / ROLLER

Coditherm FLAT/Roller is ideal for thermal transfer printing on objects with large flat surfaces. It is particularly suitable for applications requiring a large printing area or in case of irregular surfaces. The transfer device consist of a mobile carriage carrying a heated roller device. The hot roller may be either soft or hard according to the surface to be printed.

TECHNICAL SPECIFICATIONS

  • Max. printing area: max: 95x330mm (the printing area depends on the transfer device type).
  • Printing definition: 12 dots/mm (300dpi).
  • Printing speed: up to 90mm/s
  • Recommended ribbon type: POSY types for printing on slightly rough surfaces; RINK types for printing on glossy surfaces.
